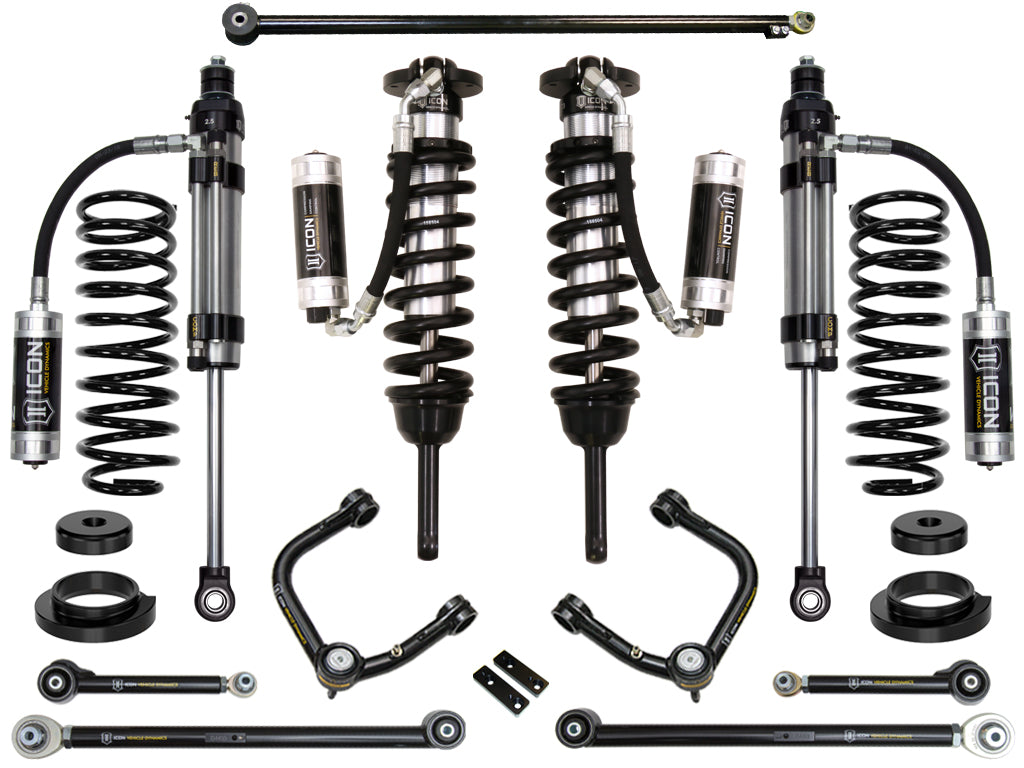

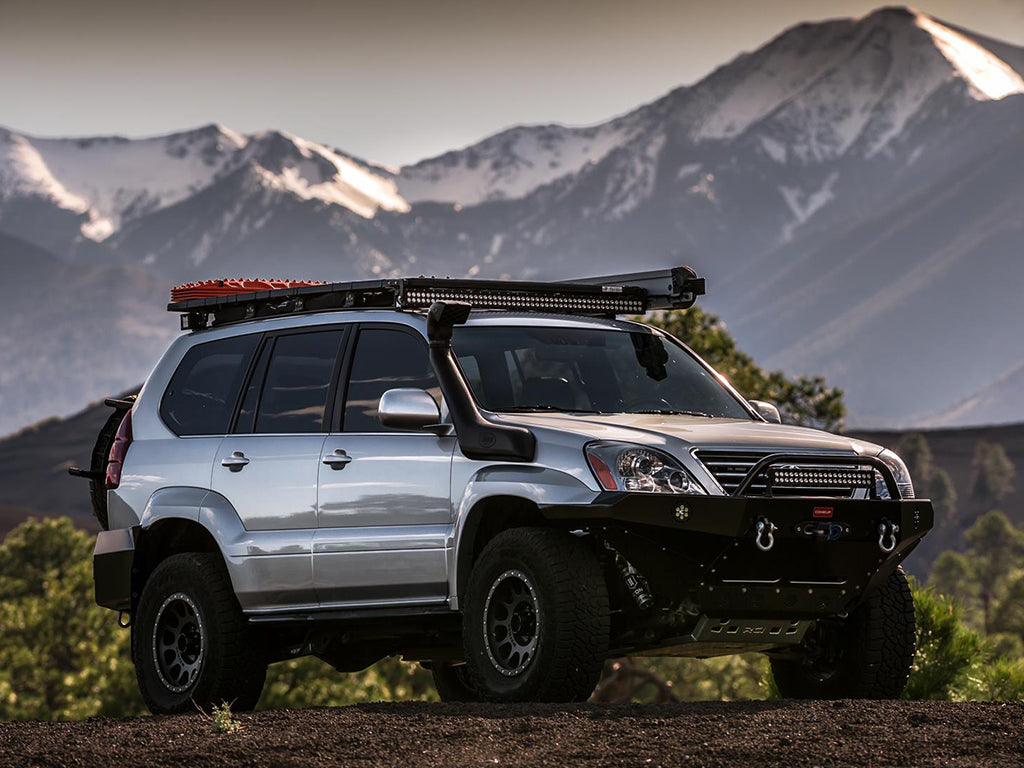

ICON 2003-09 Lexus GX470, 0-3.5" Lift, Stage 8 Suspension System, Tubular UCA

The Stage 8 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks equipped with ICON's CDC (Compression Damping Control) Valve. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. In addition, the coilovers feature a remote reservoir for exceptional cooling properties, ICON-engineered coil springs for superior vehicle "feel" through the range of travel, and are height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. The coilovers are paired with tubular steel Delta Joint upper control arms for extended wheel travel and geometry correction for more precise wheel alignment. ICON 2” lift rear coil springs are paired with 2.5 Omega bypass remote reservoir rear shocks that combine vehicle-specific valving, more aggressive bump zones, and compression and rebound adjustment to give end-users ultimate control of performance and ride quality. ICON's tubular steel rear upper and lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, the lower links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. An adjustable rear track bar is also included to help correct the rear end alignment as well as for KDSS compatibility. Specifically for the GX470 platforms a rear coil spring conversion kit is included to eliminate the factory rear air bags. The ICON Vehicle Dynamics 2003-2009 Lexus GX470 Stage 8 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features & Benefits

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
• Adjustable coilovers with remote reservoirs provide 0-3.5" of lift height
• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Tubular rear upper and lower links offer increased strength, improved geometry, and pinion angle adjustment
• Omega Series two-tube bypass rear shocks allow for compression and rebound damping adjustment without need for tools
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Series rear remote reservoir shocks with 7/8" shafts
• Included rear coil conversion kit eliminates factory air system
• Adjustable rear track bar ensures KDSS compatibility and proper rear axle alignment
• Bolt-on system means no cutting or welding necessary for install
