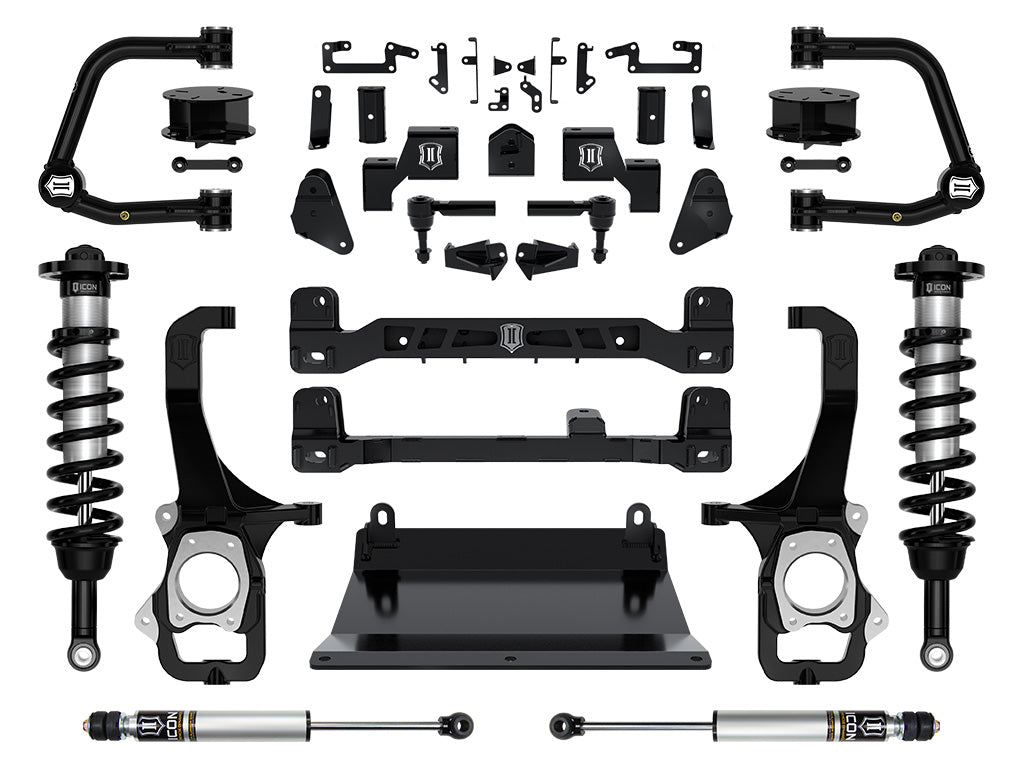

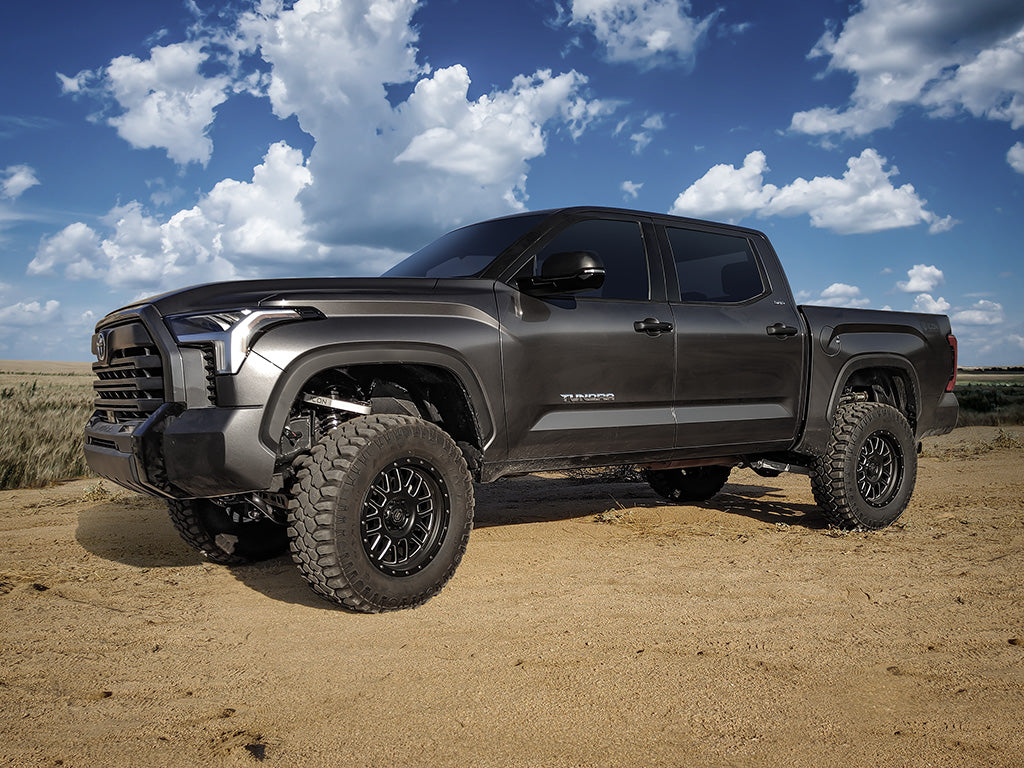

ICON 2022-2026 Toyota Tundra, 6" Lift, Stage 2 Suspension System, Tubular

The ICON Vehicle Dynamics Stage 2 6" Suspension System is engineered to transform the 2022-2026 Toyota Tundra into a highly capable on- and off-road performer while providing the clearance to run 37-inch tires at full articulation. Vehicle-specific tuned 2.5 Series front coilovers with internal reservoirs deliver exceptional damping performance, improved vehicle control, and up to a 40% increase in front wheel travel over stock without overstressing OE suspension components. Adjustable ride height provides 5-6 inches of front lift, while the system's innovative design achieves a full 6 inches of lift with only 4 inches of crossmember drop to maximize ground clearance and minimize CV joint angles. Tubular upper control arms equipped with ICON's patented Delta Joint Pro (U.S. Pat. 10,731,700) provide increased strength, exceptional durability, improved caster correction for enhanced drivability, and 90 degrees of total articulation for unrestricted suspension movement. The system maintains factory track width while optimized suspension geometry nearly eliminates the bump steer characteristic of stock Tundras.

Features & Benefits

• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• 2.0 Aluminum Series rear shocks provide balanced tune with the front coilovers
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
