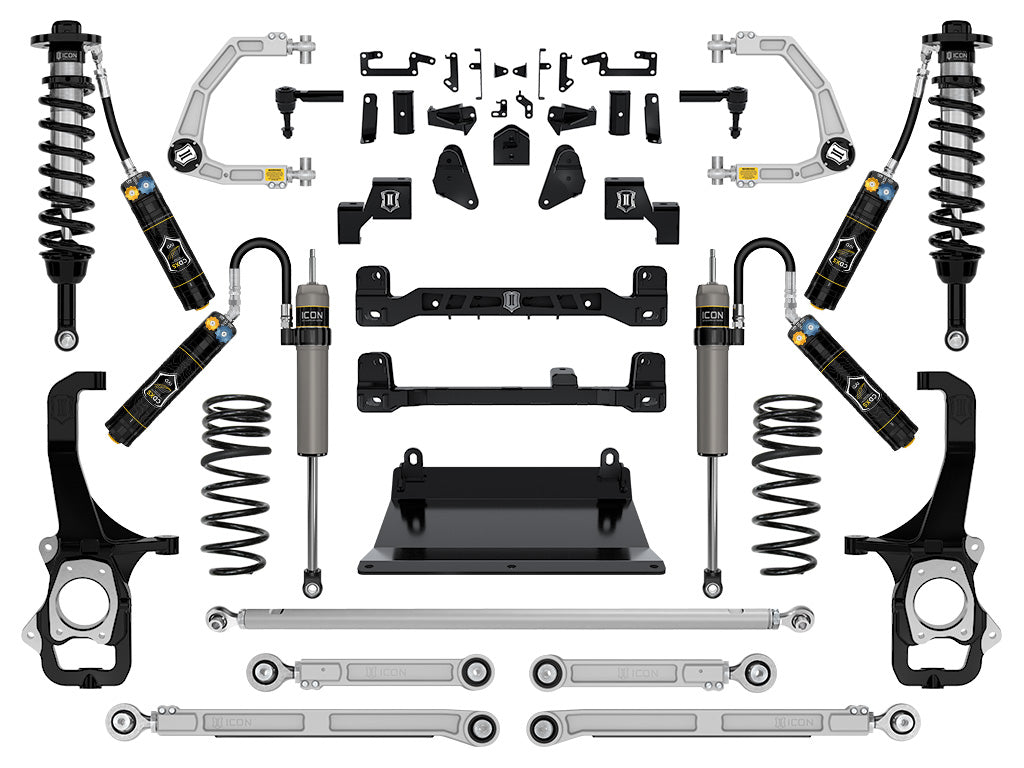

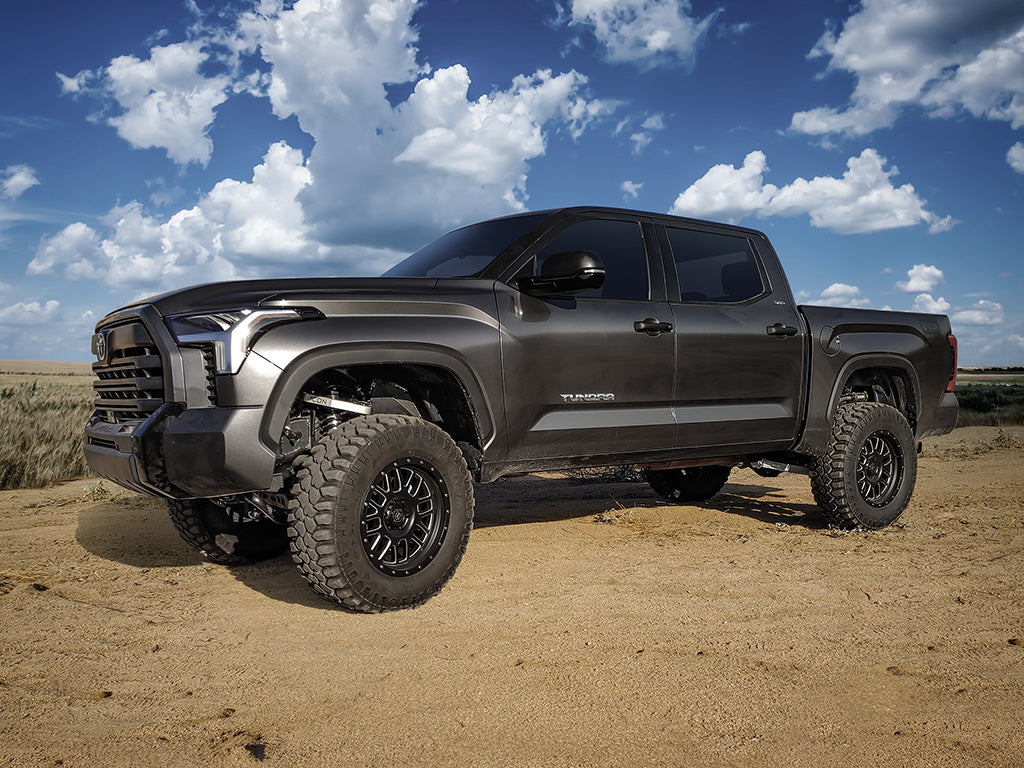

ICON 2022-2026 Toyota Tundra, 6" Lift, Stage 7 Suspension System, Billet, CDXS

The ICON Vehicle Dynamics Stage 7 6" Suspension System with CDXS delivers an advanced level of suspension performance, adjustability, and durability for the 2022-2026 Toyota Tundra. Designed for drivers seeking enhanced tuning capability and maximum confidence in demanding environments, this system combines ICON's 2.5 Series shock technology with premium suspension components engineered to improve ride quality, articulation, and off-road performance. Vehicle-specific tuned 2.5 Series front coilovers and rear shocks with remote reservoirs provide superior damping control, increased fluid capacity, and improved heat dissipation for consistent performance during extended off-road use. Equipped with ICON CDXS technology, all shock absorbers feature independent high-speed and low-speed compression damping adjustment, allowing precise tuning of handling response, ride quality, and suspension aggressiveness across a wide range of driving conditions. The system allows for up to a 40% increase in front wheel travel over stock without overstressing OE components and features adjustable front ride heights from 5-6 inches of lift. Through innovative engineering, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, maximizing ground clearance while minimizing CV joint angles.

Features & Benefits

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
• Billet rear upper and high clearance lower links improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system
• Billet rear lower links have replaceable nylon rock sliders to protect the links from trail damage
• On-vehicle adjustable billet rear track bar properly centers rear axle while also improve rear suspension performance
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
