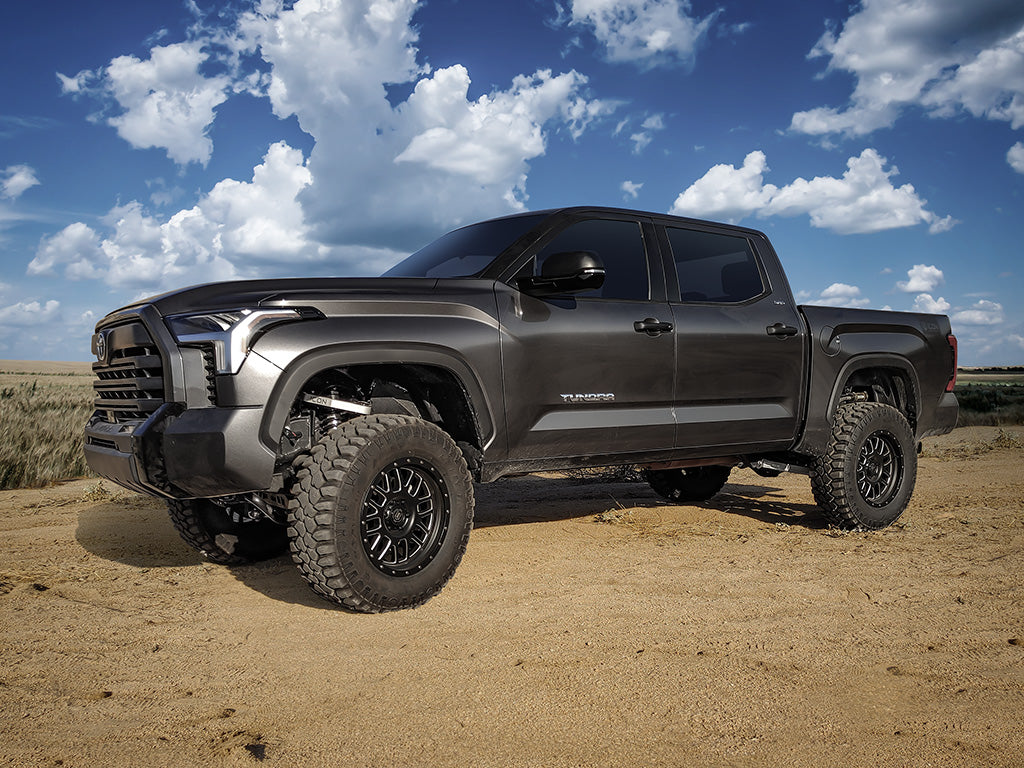

Built for the ICON 2022-2026 Toyota Tundra, 6" Lift, Stage 8 Suspension System, Billet, this ICON Vehicle Dynamics component delivers rugged durability, precise fitment, and trail-ready performance. Engineered for serious off-road use while maintaining everyday drivability.

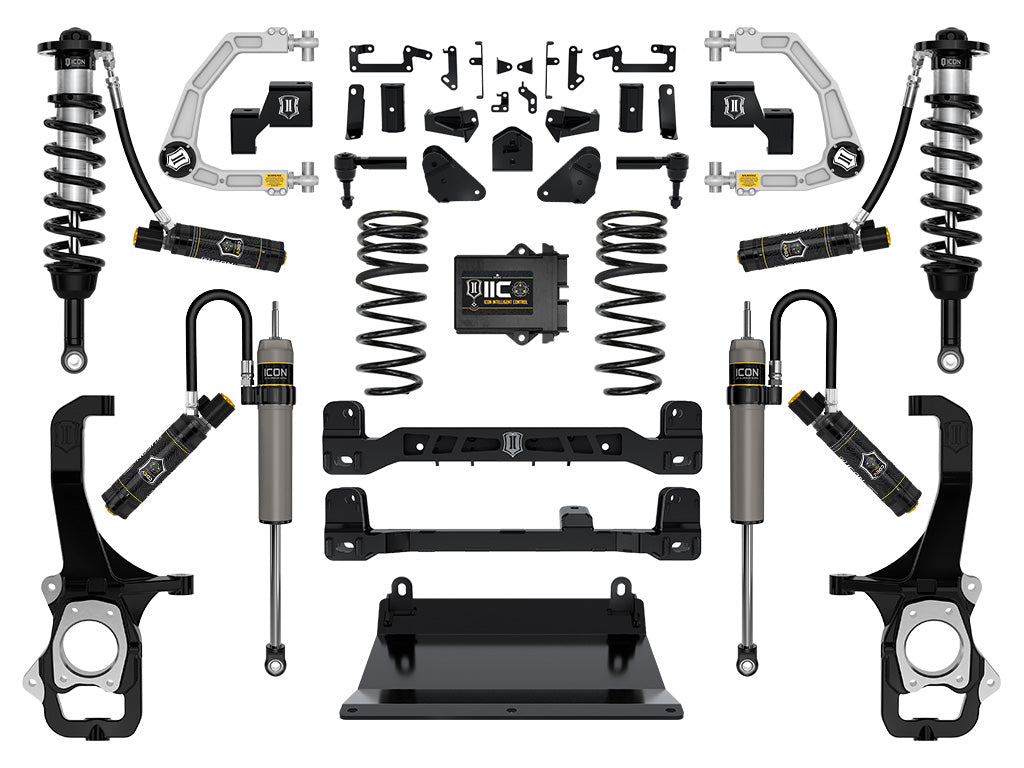

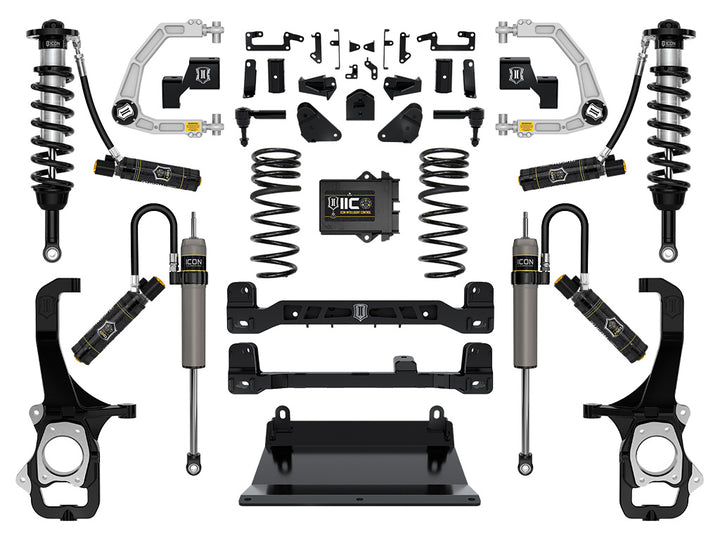

The ICON Vehicle Dynamics Stage 8 6" Suspension System with CDEV technology delivers a highly advanced suspension package for the 2022-2026 Toyota Tundra, combining electronically controlled damping, premium suspension components, and optimized geometry for exceptional performance on and off the road. Designed for drivers who demand the ultimate level of suspension adjustability and control, this system features ICON 2.5 Series front coilovers and rear shocks with remote reservoirs that provide superior damping performance, increased fluid capacity, and improved heat dissipation for consistent performance during extended off-road use. Equipped with ICON's Compression Damping Electronic Valve (CDEV) technology, the system allows in-vehicle adjustment of compression damping settings and active damping control through ICON Intelligent Control (IIC). Utilizing onboard sensors to monitor vehicle movement, chassis dynamics, and G-forces, IIC works with user-defined settings to make near-instantaneous, on-the-fly compression damping adjustments for optimized ride quality, handling response, and vehicle control. The system allows for up to a 40% increase in front wheel travel over stock without overstressing OE components and features adjustable front ride heights from 5-6 inches of lift. Through innovative engineering, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, maximizing ground clearance while minimizing CV joint angles.
Features & Benefits
- 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

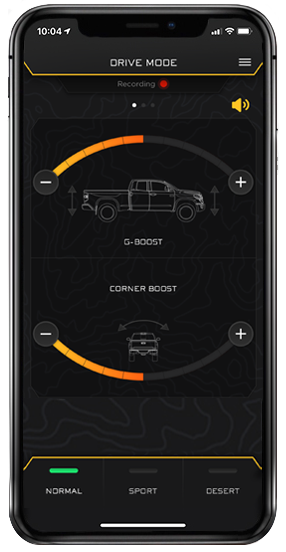

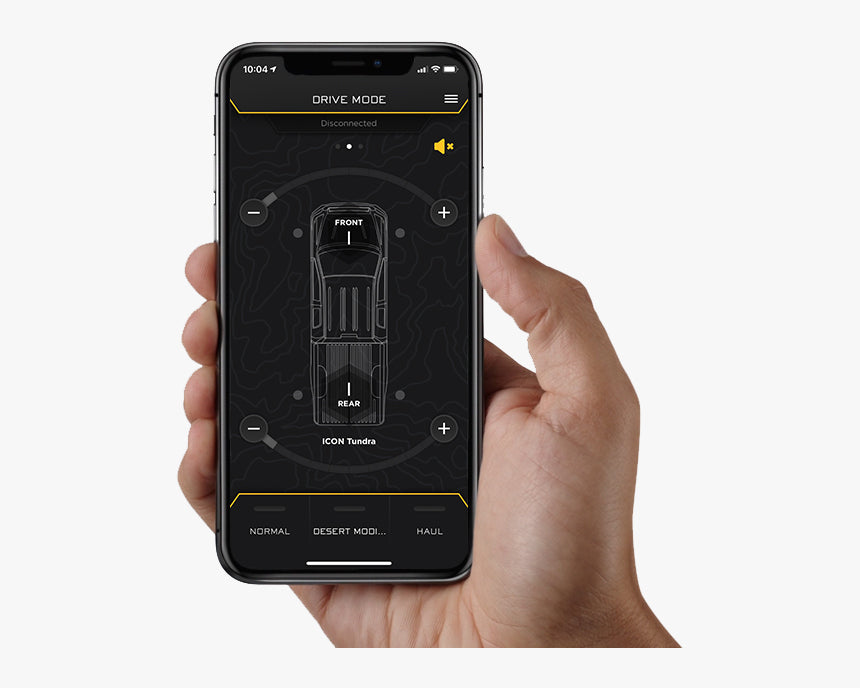

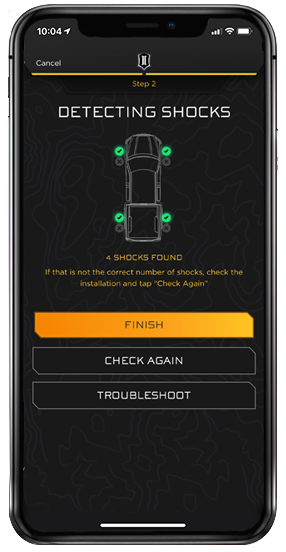

- ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via IIC

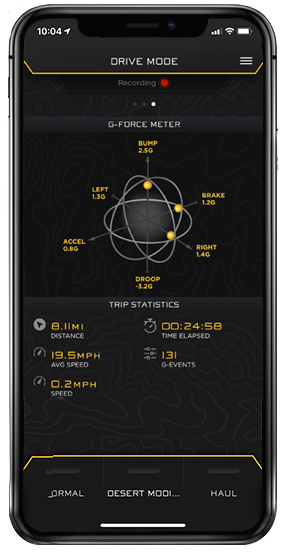

- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make on-the-fly, near instantaneous compression damping adjustments on CDEV-equipped shocks
- System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
- Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
- Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
Currently, we do not have an installation guide available for this product. Please contact support for assistance.
