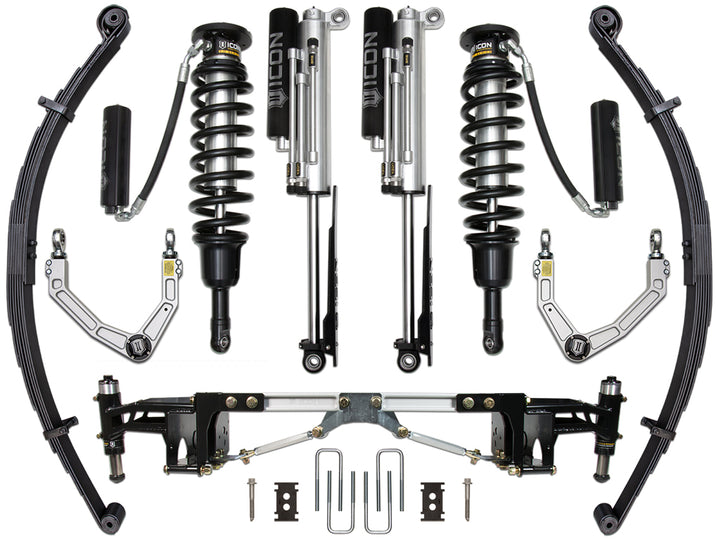

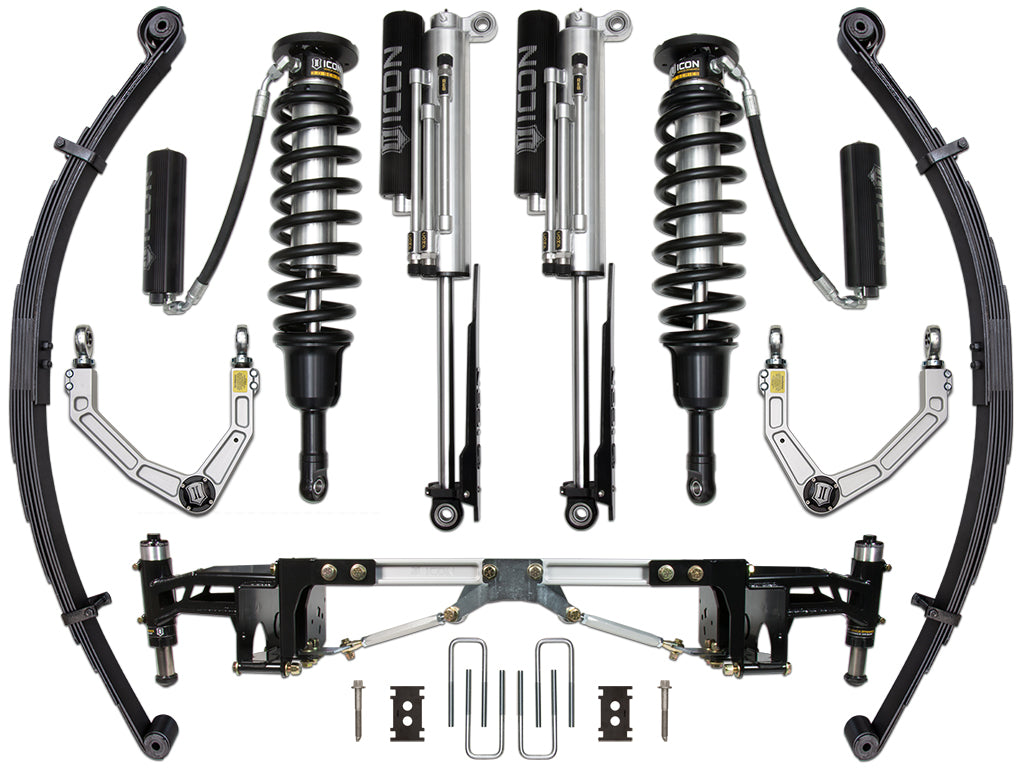

Built for the ICON 2017-2020 Ford Raptor, 1-3" Lift, 3.0, Stage 4 Suspension System, this ICON Vehicle Dynamics component delivers rugged durability, precise fitment, and trail-ready performance. Engineered for serious off-road use while maintaining everyday drivability.
After hundreds of hours of R&D and thousands of miles of real world on and off-road testing, ICON engineers have developed products that provide a true performance upgrade over the factory components found on the 2017-2020 Ford F150 Raptor. The Gen. 2 Raptor is faster, lighter, and smarter than its older brother - suspension mounting locations have changed, a significant amount of weight was trimmed off of the truck, and new technology has been introduced both on the side of safety and performance. In typical ICON fashion, the new Raptor was pushed to its limits in stock trim to build a list of performance “needs and wants”. After this process, the ICON engineering team began to go over the truck front to rear to identify any opportunities to overcome the limits of the OE suspension and achieve the gains laid out in the previous phases of R&D.
Features & Benefits
- 3.0 SERIES COILOVER SHOCK KIT
- Adjustable coilovers yield 1-3” of front lift height
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Superior low speed control reduces body roll and increases on-road stability
- Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
- ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
- Barreled coil spring design maximizes travel and provides more efficient packaging
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
- Heavy duty CNC machined 1” shock shafts
- FK Rod End COM12 spherical bearings ensure maximum strength and durability
- CAD plated shock body with hard anodized piston and top cap
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
- BILLET ALUMINUM UPPER CONTROL ARM KIT
- CNC machined 6061 billet aluminum construction for light weight and exceptional strength
- Built-in caster correction improves front end geometry
- Patented Delta Joint (U.S. Patent No. 10,731,700) for maximum durability and noise-free operation
- Camber and caster adjustability allows for precise wheel alignment
- ICON double adjuster sleeves for easy on-vehicle adjustment
- Vehicle specific taper pin provides OE-like fitment
- PTFE Lined 7/8” FK Rod Ends increase rigidity and improve response
- Built in o-ring sealed dust cover cap

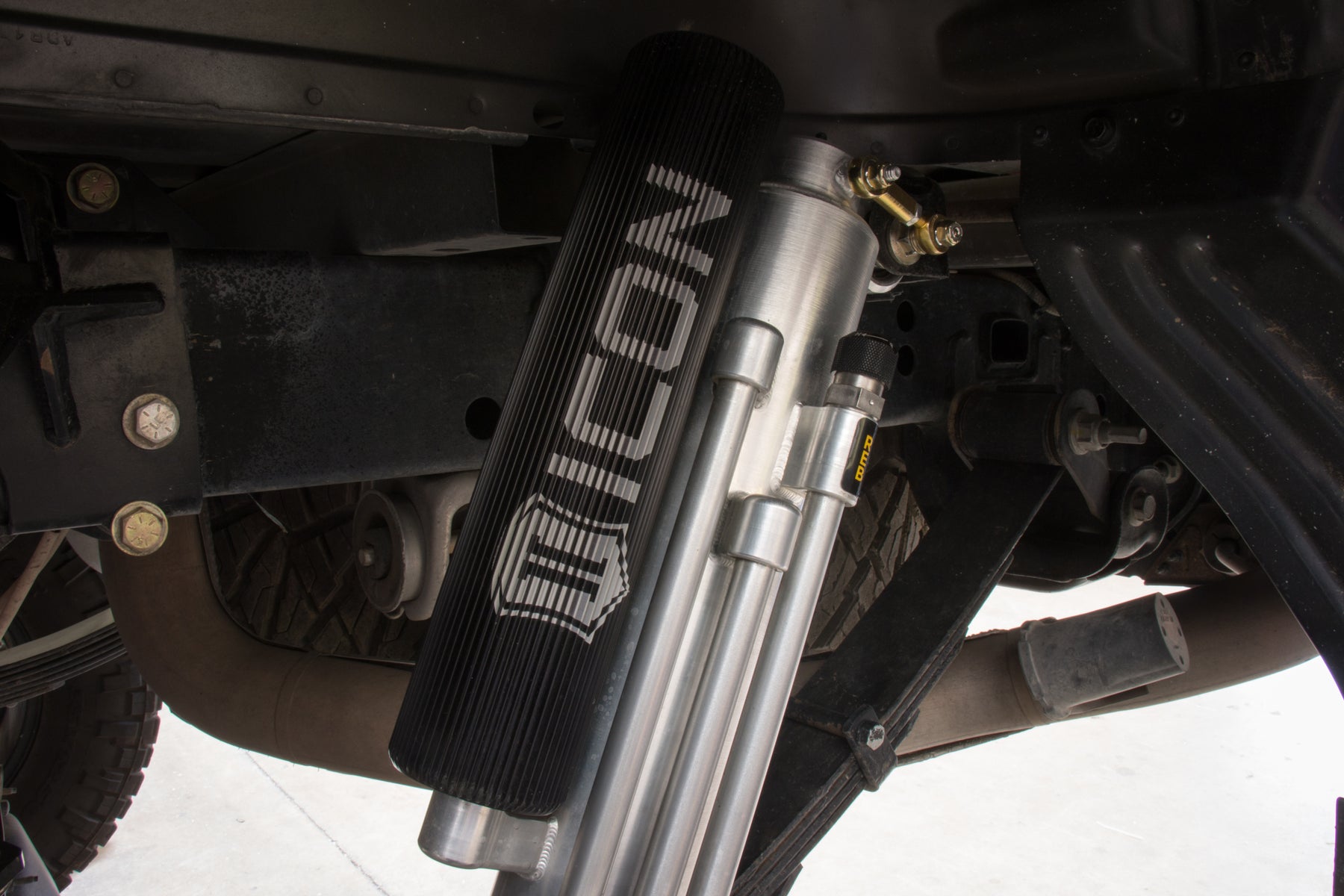

- 3.0 SERIES 3-TUBE BYPASS SHOCK KIT
- 3-tube bypass design and "Bump Zone" technology provides multiple unique zones of damping and rebound control
- 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
- 12" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
- Offset upper eyelet with patented ICON Anti-Wobble link for optimized shock mounting and packaging
- Easy-to-adjust detented knobs offer quick adjustability without the use of tools
- Specially engineered damped valve stops for quiet and precise operation without the loud “clicking” noise common with other brands
- Urethane shin guards help to protect the shock shaft & rod end from premature wear

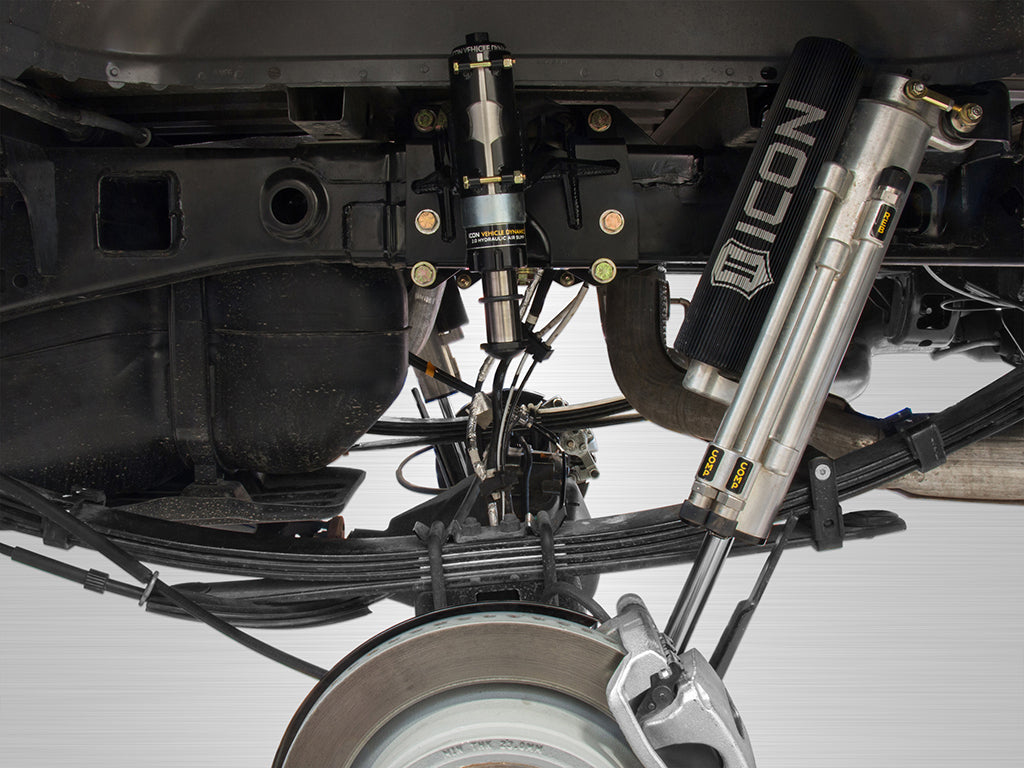

- HYDRAULIC REAR BUMP STOP KIT
- Bolt-on installation does not require any fabrication or removal of the bed
- 2.5” travel hydraulic bump stop reduces rear end ‘kick’ and improves overall vehicle performance
- Velocity sensitive technology exponentially increases bottom-out resistance
- Vehicle specific bump stop tune provides smooth engagement and excellent ride quality
- 6061 billet aluminum crossmember increases chassis rigidity to improve overall vehicle dynamics
- Steel clamshell brackets strengthen the frame in critical areas to prevent damage from extreme off-road use
- Adjustable tension rods allow the frame to be preloaded to withstand torsional force during hard impacts
- Heavy duty 1.25” CNC machined nitro steel shafts
- Multi-stage CAD plated body for maximum corrosion resistance
- Replaceable noise-reducing striker pad
- Fully serviceable
- MULTI-RATE LEAF SPRING KIT
- 3 user-adjustable spring rates for unique vehicle setups
- Triple military wrap front eyelet and rear half wrap for increased durability
- Rebound leaf reduces severe axle wrap
- Leaf separators and tip inserts reduce noise and friction while increasing ride comfort
- Direct bolt-in to OEM spring location makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Currently, we do not have an installation guide available for this product. Please contact support for assistance.
